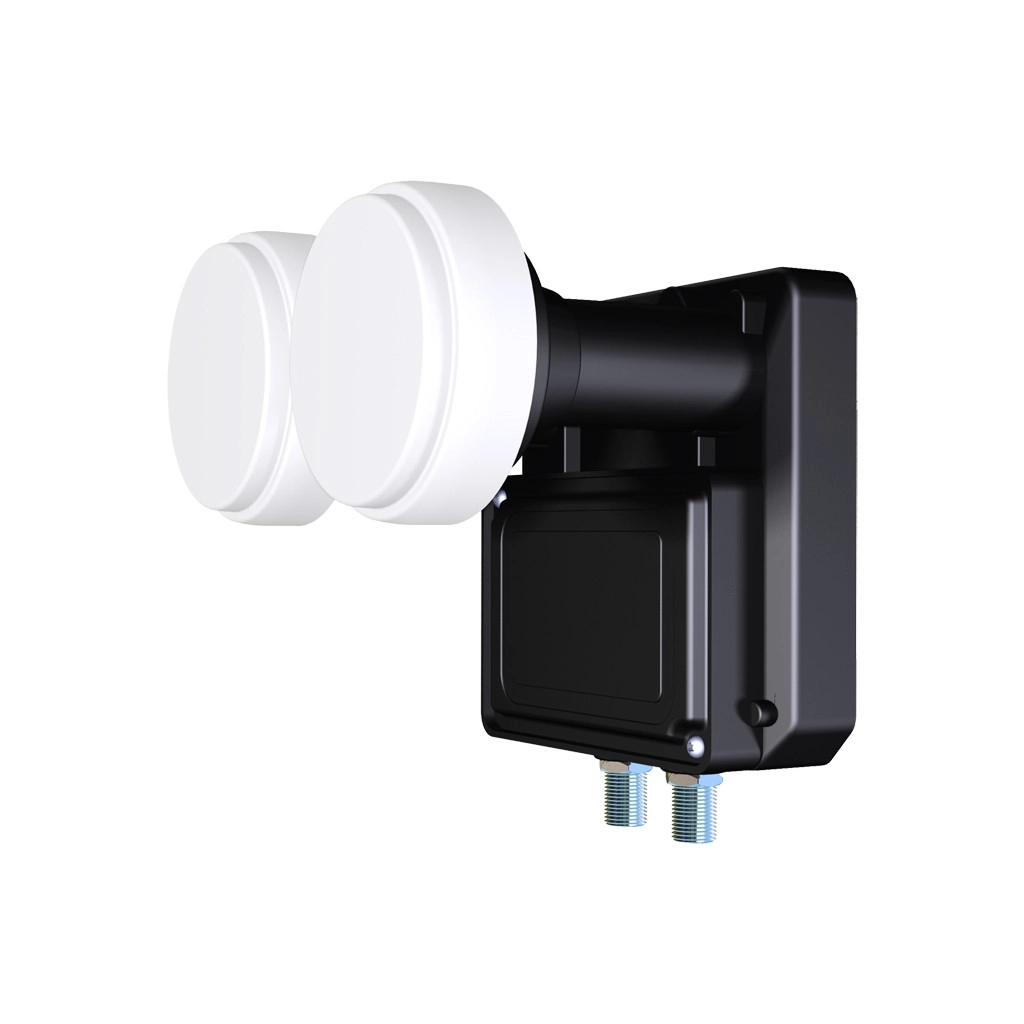

Iverto LNB schotel >78 cm
Art. nr.: 210440

Deze Duo LNB is speciaal voor grotere (78-88cm) schotels. deze schotels heeft u nodig wanneer u naar Spanje, Portugal of  Scandinavische landen op vakantie gaat. De Duo LNB zorgt dat u met deze typen schotels een optimaal beeld krijgt zowel op Astra 1 danwel op Astra 3.

Specificaties:

  • ?Low Band Input Frequency Range: 10.7 ~ 11.7 GHz
  • Low Band Output Frequency Range: 950 ~ 1950 MHz
  • Low Band LO Frequency: 9.75 GHz
  • High Band Input Frequency Range: 11.7 ~ 12.75 GHz
  • High Band Output Frequency Range: 1100 ~ 2150 MHz
  • High Band LO Frequency: 10.6 GHz
  • Noise Figure: 0.2 dB Typ. (0.7 dB Max.)
  • LO Initial Accuracy: +/- 1.0 MHz Max.
  • LO Temperature Drift: +/- 3.0 MHz Max.
  • Phase Noise (@ 10 kHz): - 80 dBc / Hz Max.
  • Conversion Gain: 50 ~ 60 dB
  • Gain Ripple (Over 26 MHz Bandwidth): +/- 0.75 dB
  • Gain Variation (Over Full Band): +/- 4 dB Max.
  • Image Rejection: 40 dB Min.
  • 1 dB Compression Point (@ Output): 0.0 dBm Min.
  • Control: Satellite A/B Selection: DiSEqC 1.0 (Sat A* = ASTRA 19.2° East,  Sat B = ASTRA 23.5° East)
  • Cross Polarization Isolation: 22 dB Min.
  • Output VSWR: 2.0 : 1
  • In-Band Spurious: - 60 dBm Max.
  • Current Consumption: 210 mA Max. @ 11 ~ 20 V
  • Operating Temperature: - 30 °C  ~  + 60 °C
  • Output Impedance: 75 Ω
  • Output Connector: F-Type (Female)



Lees meer
Adviesprijs: € 49,95
€ 44,95
Op voorraad, volgende werkdag verzonden
aantal
neem contact op
Iverto LNB schotel >78 cm

Deze Duo LNB is speciaal voor grotere (78-88cm) schotels. deze schotels heeft u nodig wanneer u naar Spanje, Portugal of  Scandinavische landen op vakantie gaat. De Duo LNB zorgt dat u met deze typen schotels een optimaal beeld krijgt zowel op Astra 1 danwel op Astra 3.

Specificaties:

  • ?Low Band Input Frequency Range: 10.7 ~ 11.7 GHz
  • Low Band Output Frequency Range: 950 ~ 1950 MHz
  • Low Band LO Frequency: 9.75 GHz
  • High Band Input Frequency Range: 11.7 ~ 12.75 GHz
  • High Band Output Frequency Range: 1100 ~ 2150 MHz
  • High Band LO Frequency: 10.6 GHz
  • Noise Figure: 0.2 dB Typ. (0.7 dB Max.)
  • LO Initial Accuracy: +/- 1.0 MHz Max.
  • LO Temperature Drift: +/- 3.0 MHz Max.
  • Phase Noise (@ 10 kHz): - 80 dBc / Hz Max.
  • Conversion Gain: 50 ~ 60 dB
  • Gain Ripple (Over 26 MHz Bandwidth): +/- 0.75 dB
  • Gain Variation (Over Full Band): +/- 4 dB Max.
  • Image Rejection: 40 dB Min.
  • 1 dB Compression Point (@ Output): 0.0 dBm Min.
  • Control: Satellite A/B Selection: DiSEqC 1.0 (Sat A* = ASTRA 19.2° East,  Sat B = ASTRA 23.5° East)
  • Cross Polarization Isolation: 22 dB Min.
  • Output VSWR: 2.0 : 1
  • In-Band Spurious: - 60 dBm Max.
  • Current Consumption: 210 mA Max. @ 11 ~ 20 V
  • Operating Temperature: - 30 °C  ~  + 60 °C
  • Output Impedance: 75 Ω
  • Output Connector: F-Type (Female)



Product specificaties
KleurZwart
Garantietermijn2 jaar
Gewicht0 tot 0.99 kg
Kenmerken algemeenGeschikt voor schotel van 78 tot 88 cm
